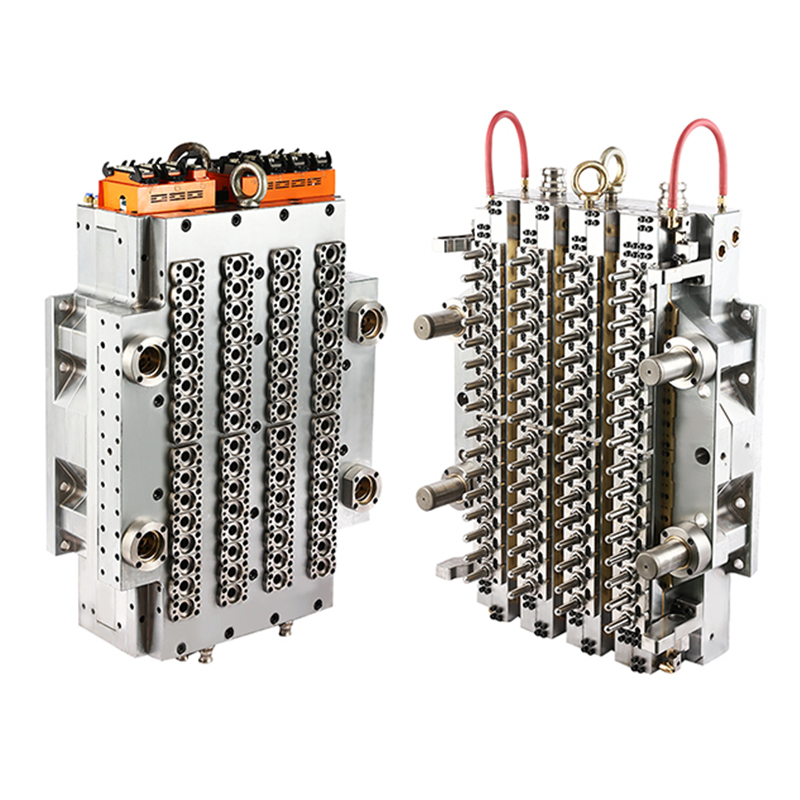

64 Cavity PET Preform Mould

64 Cavity PET Preform Mould is suitable for lightweight water bottle preform, which needs a big production capacity. This kind of PET preform mould dimension is very big, and normally requires a big injection moulding machine, but after mould structure optimization of 64 cavity mould, mould width is reduced to fit the 320Ton injection moulding machine (Tie-bar is 660mmx660mm), it saves your production cost. Besides, our cooling connector is 2inch, which has better cooling performance, to increase the production speed and production capacity. Its high-precision design is complemented by its high-precision hot runner system and valve gate.

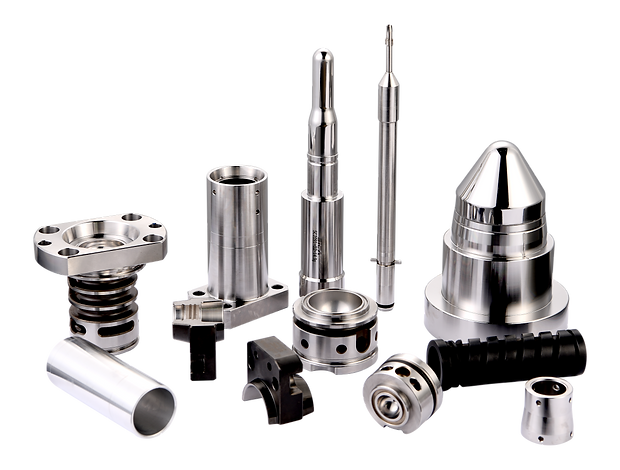

For any brand preform mould, such as HUSKY, MHT, SIPA, OTTO or Chinese brand etc. No matter how long it is used, we are able to refurbish it thoroughly. Or provide you with the spare parts based on your mould drawing.

Inquiry Download

Description
Inquiry
How to Order

Product Name	64 Cavity PET Preform mould
Core &Cavity Steel	S136,FS636,632 (Chinese Steel) ASSAB S136(Sweden)
Core &Cavity Steel	S136,FS636,632 (Chinese Steel) ASSAB S136(Sweden)
Mould base	P20,4Cr13, Standard Mould Base
Steel hardness:	HRC32-35 for slider and stripper palte and other plates
	HRC49-51 for core and cavity material.
	HRC49-51 for Neck ring and Lock ring
Plastic material	PET resin
Cavity Number	1x8, 1x16,1x24,1x32,1x48,1x64,1x72
Injection System	Short tail, Long tail, Pin Valve gate
Ejector System	Stripper plate
Cycle Time	Based on preform weight
Delivery Time	45-60 Days
Mould lifetime	At least 3 million Shots
Warranty Time	One Year or 1million shots

64 Cavity PET Preform mould Feature

1. Neck size: 15mm,18mm,20mm,24mm,28mm,30mm, Weight: from 5g to 45g, Gate: Pin valve type

2. Cavity water flow adopts spiral type independent of cycle structure which is good for fast cooling of preform

3. Chinese stainless steel or Imported Stainless steel from ASSAB for mold stacks and other components

4. Hardness up to HRC49-51 after special heat-treatment

5. Taper matching design for core and lock ring, good for venting and easy for neck solidification

6. Double taper design neck rings, which allow high injection force without flash

7. Pin valve hot runner system is applied, which is best runner system for preform mould

8.Each mould plate with electroplating treatment, which play a very long time rust prevention

9. Mould with stable performance and a long lifetime to create value for customers.

We have own standard mould frame for cap mould and handle mould, we make complete inspection on mould to ensure the structure consistence and spare parts standardized. In addition, we will do independent standardization test on mould cooling system and hot runner system. We are famous 64 Cavity PET Preform Mould suppliers and manufacturers in China. We take full range test and analysis on product size, appearance, injection techniques and Physical Parameter. The analysis includes mold flow analysis, mold ejection, cooling system, rationality of guide system, application of mold parts specification, customer's machine selection and application of special requirements. We also OEM/ODM 64 Cavity PET Preform Mould design & manufacturing.

How to place an order for moulds?
1.R&D	We support customer R&D. Make the files or improve the design if you needed.
2. Quotation Making	Mould Quotation will be finished in 1 day according to the information we get.
3. Negotiation	The quality, price, material, delivery time, payment item, etc.
4. Mould Design	1-2days for product 3D/2D drawing design as per customer's design. Then in further make the mould 2D/3D design.
5. Mould	1. confirm the products and the mold design
	2. Mould material prepare
	3. Rough machining(heat treatment on mold base and pre-harden on mold)
	4. CNC/ Vacuum Hardening on mold main spare parts
	5. finishing machining( JDPAINT, DEM.etc)
	6. Dimension inspection
	7. Ejector& runner& cooling & other device processes
	8. Assemble mold
6. Mould Testing	When moulds are finished, we will test the mould and we will send samples to the client.
7. Sample confirmation	If the first sample is not satisfied by the customer when it is come out. We modify the mould until meet the customer’s satisfaction.
8. Delivery	Delivery goods by sea or by air, according to customer’s requirement.
